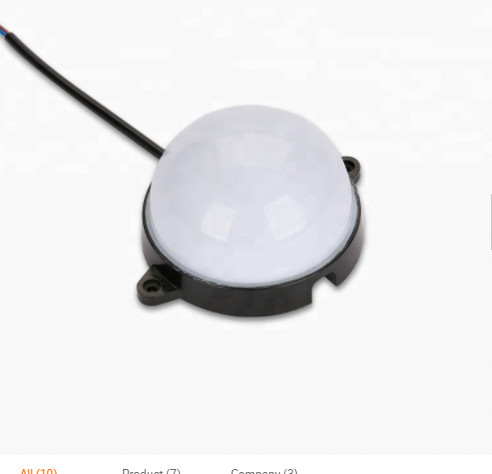

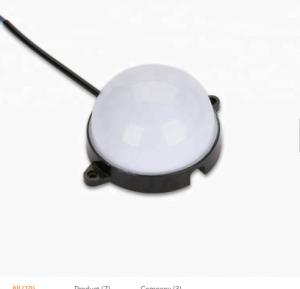

Outdoor Waterproof 5cm 1w IP65 Led Pixel Lamp

Name: Outdoor Waterproof 5cm 1w IP65 Led Pixel Lamp
Brand: PUWEI
Price: 18.00 USD

China Outdoor Waterproof 5cm 1w IP65 Led Pixel Lamp wholesale

Brand Name : PUWEI

Place of Origin : Guangdong Shenzhen

MOQ : 1 SET

Price : $18.00

Payment Terms : Western Union, L/C, T/T

Packaging Details : 100000 pcs per month

Contact Now

1w Ip65 Waterproof Outdoor Wall Dmx Rgb Rgbw Addressable Pixel Led Point Light Source

Outdoor Waterproof 5cm 1w IP65 Led Pixel Lamp

Installating Notes

1.All the testing or installing have to be performed by a qualified person ;
2.The red lines are positive ,the white lines are negative ,the green lines are data lines ,
3.Have to connect the femle port of the lamp to the controller ; the female port with extra power wirelines ;connect the green line to data port ; white line to the GND port ; please exactly follow the control diagram above ;
4.The power of controller have to be the same as the lamp,if not match with each other,the lamp will not work ;
5.The led lamp is DC24V , cann’t light it with AC driver or over DC24V driver;or the led lamp will be burned ;
6.When connecting the power wirline , please use 1pcs main power wirelines and connect from the first lamp’s ; then 20pcs as a cell , and connect all the power lines every cell to the main power wireline , the max. qty every main power wireline are 120pcs and connect the main power wireline to the power supply directly ;
7.Before turning on the power , have to check every connecting and make sure all is correct .
